Description
QRD1000UHF6P - Long range RFID-UHF reader (18 adjustable meters)

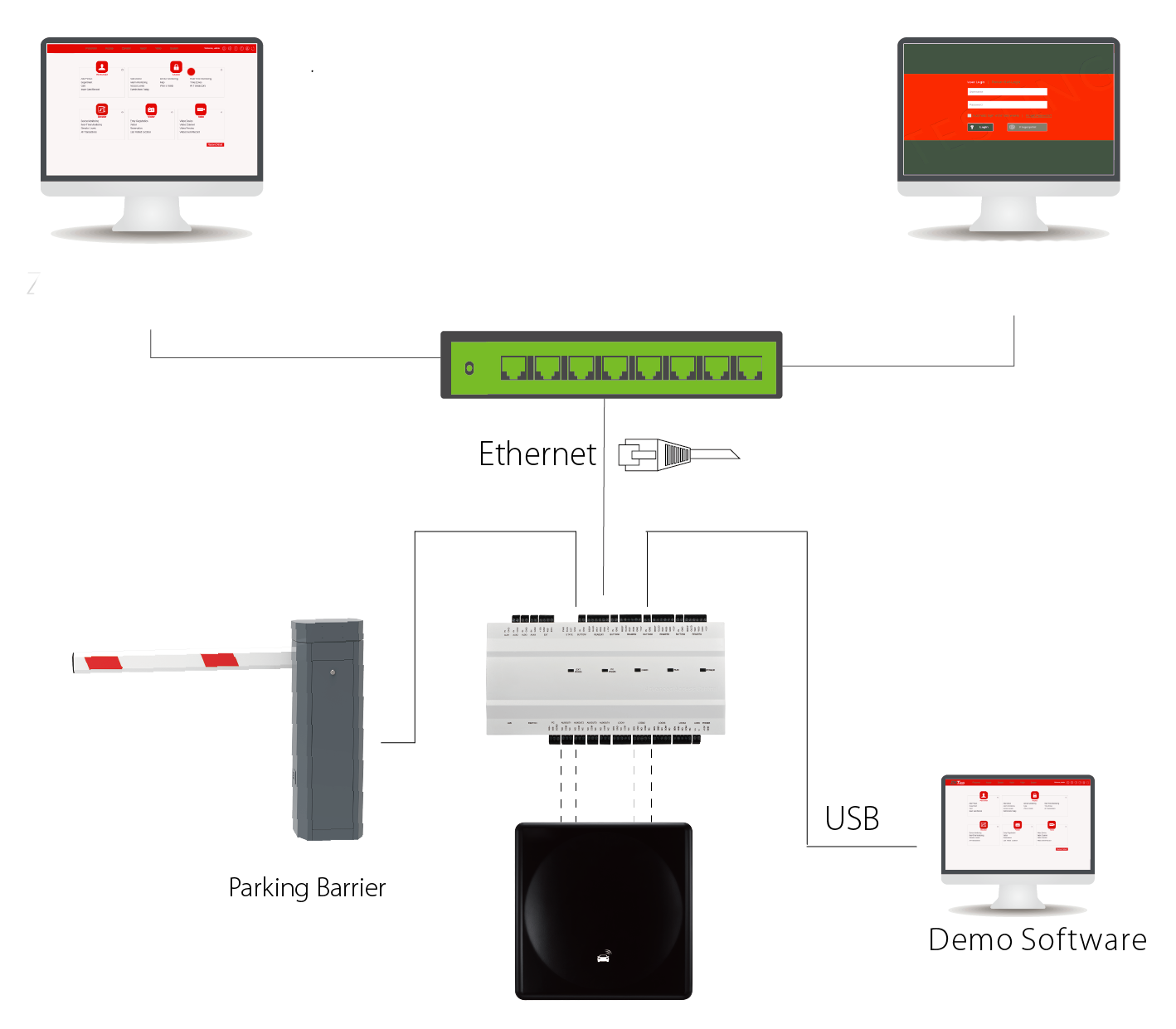

- Long-distance fixed vehicle access management.
- Contactless Access Control.
- Long distance pedestrian access control.
Long range RFID reader 18 meters (adjustable)
QRD1000UHF6P is a long distance RFID reader and high performance. It is equipped with the Impinj R2000 Chip and it has a cover waterproof. It has a consistent performance and a extended service life, minimizes external interference and improves reading distance. Consequently, can be used in various fields requiring remote identification.
It has two working modes: Read always (default) and read per shot. Wiegand 26-Bit (can be switched to 34-Bit via software). Ideal for Access Control contactless and long distance pedestrian and fixed vehicle access control.
- 2 years warranty.
Additional information
| Reading distance | Up to 18 meters (adjustable) |
|---|---|
| Frequency | 865MHz ~ 868MHz, 902MHz ~ 928MHz |
| Communication interface | Wiegand 26 (Default) / Wiegand 34, USB |
| Chip | Impinj R2000 |
| Interface protocol | EPCglobal UHF Class 1Gen2/ ISO 18000-6C, ISO 18000-6B |
| Working mode | Always read (Default) / Trigger read |
| Power output | 10dBm ~ 33dBm |
| Antenna gain | 9dBI |
| Housing material | Antenna panel: ABS plastic; Rear cover: Die-cast aluminum housing |
| Operating voltage | DC9V ~ 12V |
| Working current | 1.2A +/-10% |
| Working temperature | -20 °C – 60 °C |
| Dimensions | 310mm*310mm*90mm (±5mm) |
Downloads
-
Download datasheet: QRD1000UHF6P_uhf-rfid-reader-long-distance
