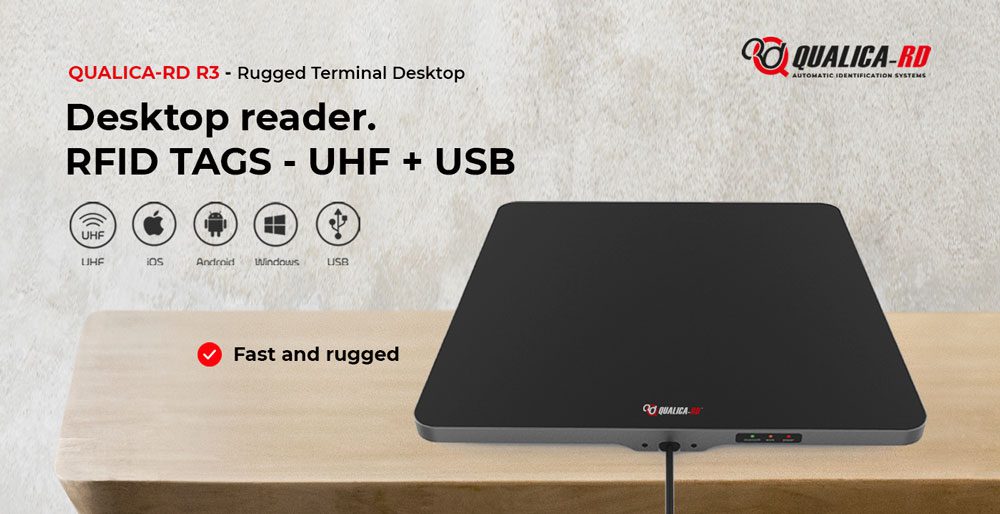

QUALICA-RD R3 UHF DESKTOP READER
QUALICA-RD R3 UHF DESKTOP READER
- Product ID: 46325
- Category: Rugged Terminals
Desktop UHF Reader.
Fast and durable.
QUALICA-RD R3 the UHF reader, recently developed, works on Windows / Android / iOS and allows reading of 50 tags at once at 30 cm distance. Drop resistant. It provides fast reading, writing and tag identification.
Data transmission can be done via Bluetooth, Type-C or USB. QUALICA-RD R3 is the ideal solution for logistics, parking, access control, identity verification, etc.
Contact us! for more information.
- 2-year warranty
| Power supply | USB, Type C |
|---|---|
| Communication | USB data transfer connection, Bluetooth 4.0. |
| Dimensions | 318 mm x 318 mm x 20 mm |
| Usage environment | • Operating temperature: -20ºC to 60ºC • Storage temperature: -40ºC to 70ºC • Humidity: 5% – 95% (non-condensing) • Protection: IP65 |
| Light identification | <ul> <li>Activation after connecting power supply</li> <li>Bluetooth connection</li> <li>Status light</li> <li>Blinking when tag is scanned</li> </ul> |
| Weight | 1133 g |
| Port | USB Type C |
| Operating system | USB, Android/Windows, SDK, Bluetooth, Android/IOS SDK |
| UHF | • Frequency: 860MHz – 960MHz (custom) • Protocol: EPC C1 GEN2 / ISO1800-6C • Output power: 1 dBm – 30 dBm (scaled) • Identification range: reading at 30 cm. distance |
