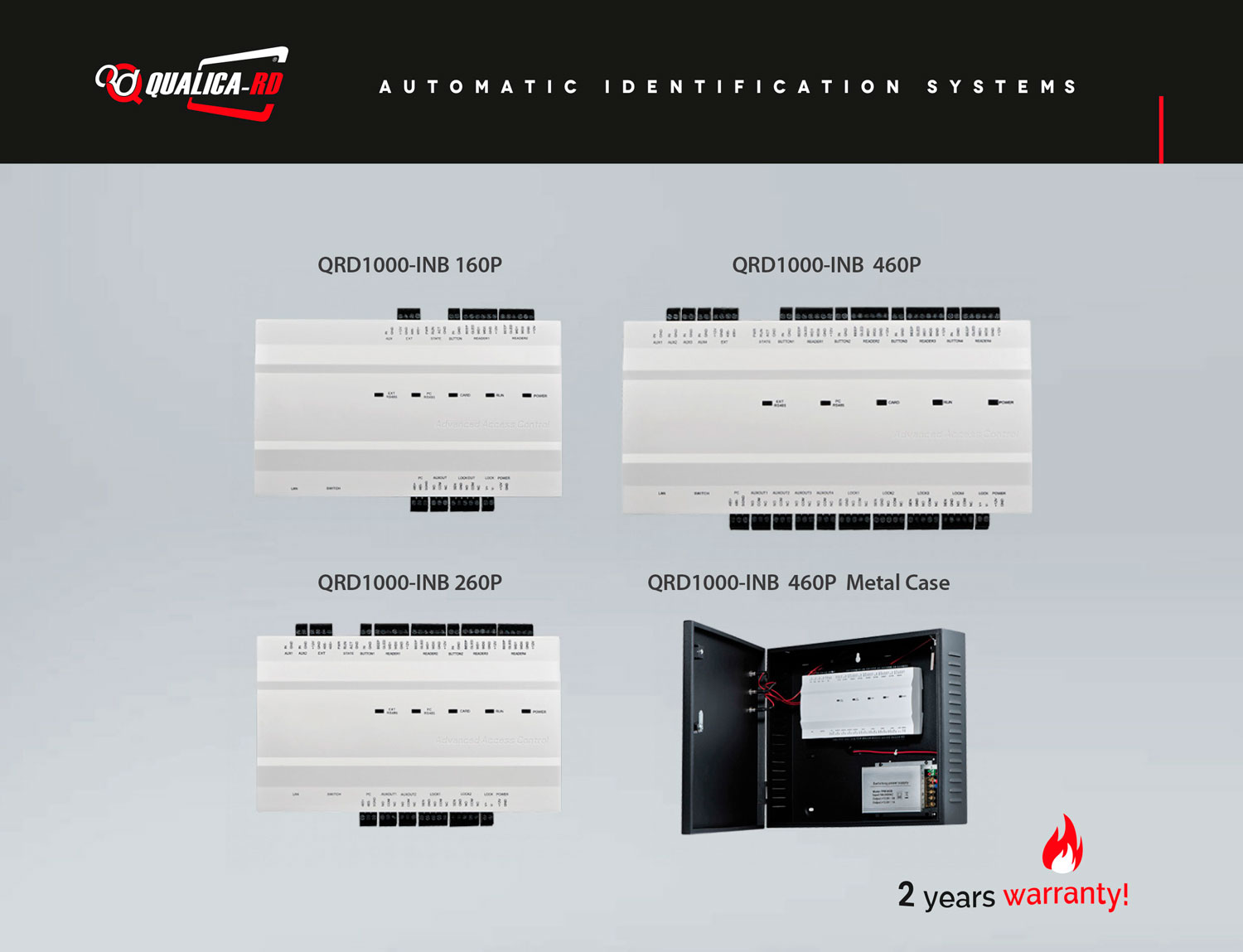

QRD1000-INB 160P/260P/460P CONTROLLER
QRD1000-INB 160P/260P/460P CONTROLLER
- Product ID: 45724
- Category: Access Control
IP-Based Biometric Access Controller
QRD1000-INB 160P/260/460P SERIES is a high-end, project-oriented line of controllers distinguished by its advanced features, notably integrated fingerprint authentication and sophisticated access control functions. These capabilities can be efficiently managed via TCP/IP communication across LAN and WAN networks.
This series integrates seamlessly with our software platform for QRDTIME Time & Attendance, providing a comprehensive biometric security solution. Paired with the RS485 reader, the control panels support multiple authentication methods, including fingerprint recognition, card access, and password verification, ensuring enhanced security.
- 2-year warranty
QRD1000-INB 160P/260P/460P ÔÇô Controller for access control
Features
- More than a door control: After programming, the auxiliary relays can function as lights, alarms, and intrusion detection panels. Access to locking devices or additional door controllers is possible.
- Options: The controllers are available in 3 sizes to meet project needs and reduce the cost of unused capacity. 1-door models, 2-door models, and 4-door models can be combined with each other.
- Integrated advanced access control: Anti-backtrack, first card opening, multiple card opening, password entry, and auxiliary input/output are integrated into the controllerÔÇÖs firmware.
- Internal biometric identification: QRD1000-INB Series performs fingerprint matching on the panels. The readers transmit stored templates in the database to the terminal via RS485. Wiegand for traditional RFID readers.
- Communication: The controllers can be easily installed on your network and support HTTP/HTTPS communication. The web server allows you to configure and modify network parameters directly and easily.
- Capacity: Data is preserved in case of power supply interruption. It continues to function if the network connection is interrupted.
Downloads
-

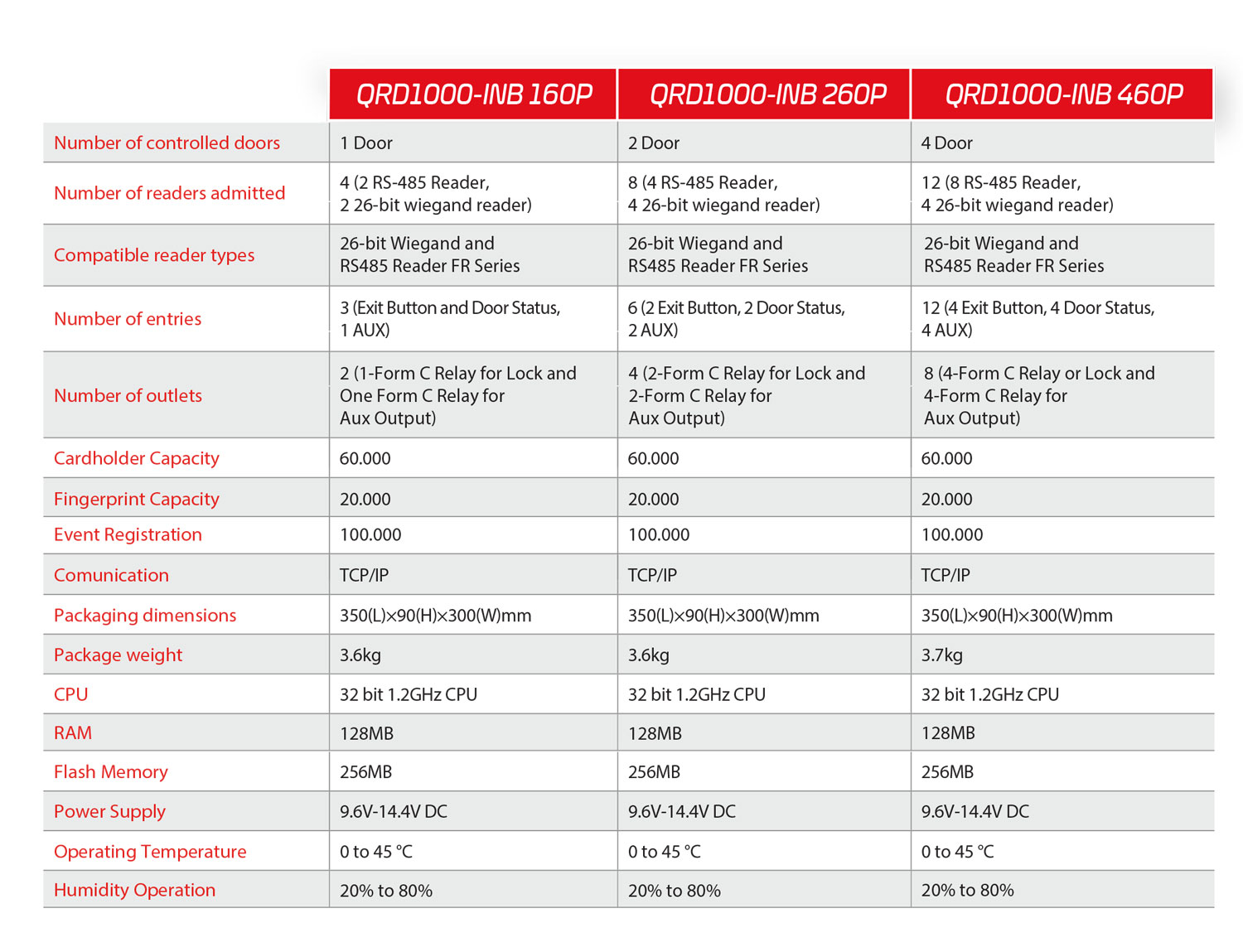

Download technical sheet: QRD1000-INB 160P, 260P, 460P controllers_datasheet
